Fusion360 QtWebEngineProcess.exe errors and edit area not work properly

I have been trying to run fusion360 for some time.
But I am not successful to run it in a somehow usable state.
I have tried it in Ubuntu and gnome-fedora from snap and from Autodesk-Fusion-360-for-Linux previously but with same result as now:

Issue: (I recorded multiple issues that I don’t know if are somehow connected).

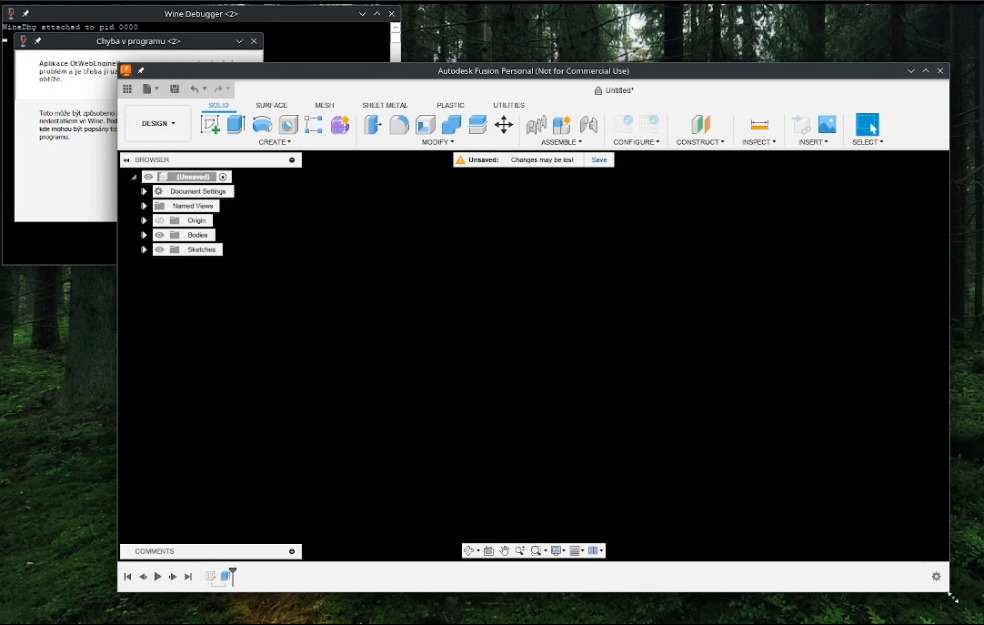

  • Fusion360 throws a lot of wine errors. (QtWebEngineProcess.exe recorded problem):
    obrazek

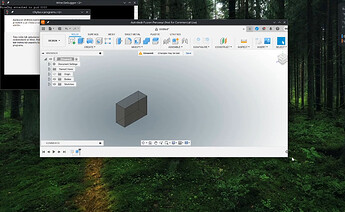

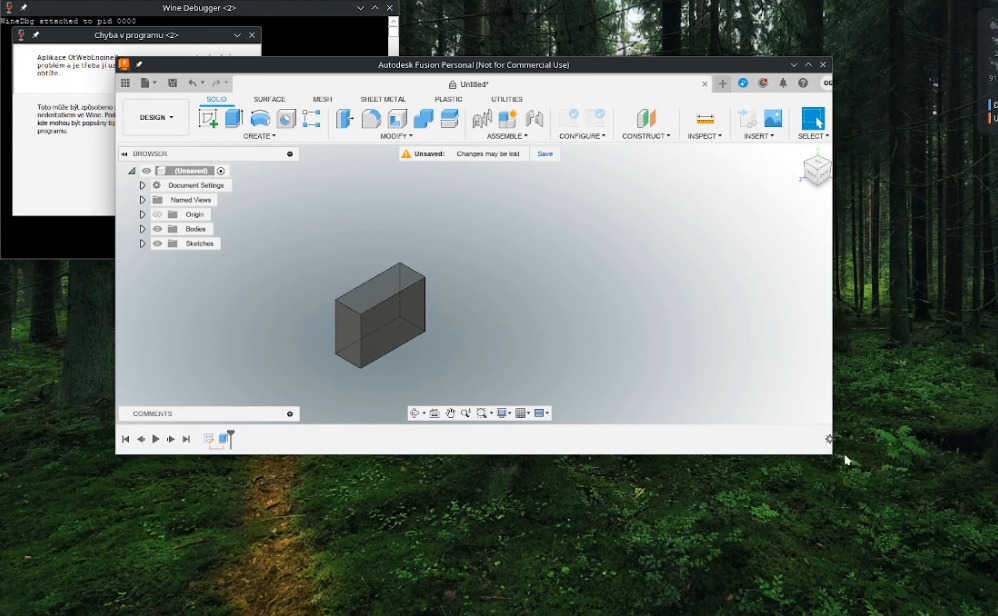

  • When editing a sketch in fusion360 you can´t type into the dimension text input.
    obrazek

  • When fusion360 window is resized to bigger model area balckout.


Reproduction:

  1. install fusion 360 from Autodesk-Fusion-360-for-Linux
    With command mkdir -p "$HOME/.fusion360/bin" && cd "$HOME/.fusion360/bin" && wget -N https://raw.githubusercontent.com/cryinkfly/Autodesk-Fusion-360-for-Linux/main/files/builds/stable-branch/bin/install.sh && chmod +x install.sh && ./install.sh

  2. login into fusion360 using command:
    wine "{userDirectory}.fusion360/wineprefixes/default/drive_c/Program Files/Autodesk/webdeploy/production/0b67cdf9b5e1511700618e51757ca1535bfaa4da/Autodesk Identity Manager/AdskIdentityManager.exe" "{link copied from browsers login button}"
    Where {link copied from browsers login button} is login ling after authentication on fusions web because wine has a problem redirecting adskidmgr:/login….
    used from git issue.

  3. issue was replicated. :partying_face:
    (QtWebEngineProcess.exe recorded problem is thrown even if you are not logged in.)

Observation:

In the command line are some warnings, but I don’t know if they are connected to this issue.
Some warnings about DPI (at first i assumed that was not a problem, but this messaging is to often) and screen and folders.

  • wine: could not opeAutodesk-Fusion-360-for-Linuxn working directory L"unix\home\ogross\Plocha\", starting in the Windows directory.

  • wine: could not open working directory L"unix\home\ogross\Plocha\", starting in the Windows directory.

  • qt.qpa.window: SetProcessDpiAwarenessContext(DPI_AWARENESS_CONTEXT_PER_MONITOR_AWARE_V2) failed: COM error 0x5: Pøístup odepøen.

  • qt.qpa.screen: “Unable to open monitor interface to \\.\DISPLAY1:” “Úspìch.”
    qt.qpa.screen: “Unable to open monitor interface to \\.\DISPLAY2:” “Úspìch.”

  • “C:/Program Files/Autodesk/webdeploy/production/0b67cdf9b5e1511700618e51757ca1535bfaa4da/plugins”
    EnableNonClientDpiScaling() failed for HWND 0x1102bc (120) (Toto volání není implementováno.)
    GetPointerType() failed: “Úspìch.”

If you are interested in full log there is : whole log

Machine specs

KDE Plasma version: 6.0.3
KDE framework version: 6.0.0
Qt Version 6.6.2
Kernel Version: 6.8.11-300.fc40.x86_64 (64-bit)
Fedora Version: 40

CPU: 6 × Intel® Core™ i5-8600 CPU @ 3.10GHz
GPU: NVIDIA GeForce GTX 1060 6GB/PCIe/SSE2

Final question:

My question is what that could mean?
And what to try to solve this issues (or get more info whats going on)?

Ask autodesk for support seems your best hope.

2 Likes

Hi, i have update on this.
First of all, i wrote on fusion360s forum but without any response. :cry:

But i managed to resolve issues i have without that.

Solution:
Fusion360 throws a lot of wine errors:
This was fixed by editing Qt6WebEngineCore.dll as described here(on end of post).

When editing a sketch in fusion360 you can´t type into the dimension text input.
When fusion360 window is resized to bigger model area balckout.
I fixed boath with switching to X11. And it works as should.

1 Like
