SSD double entry

Ask Fedora
,
1

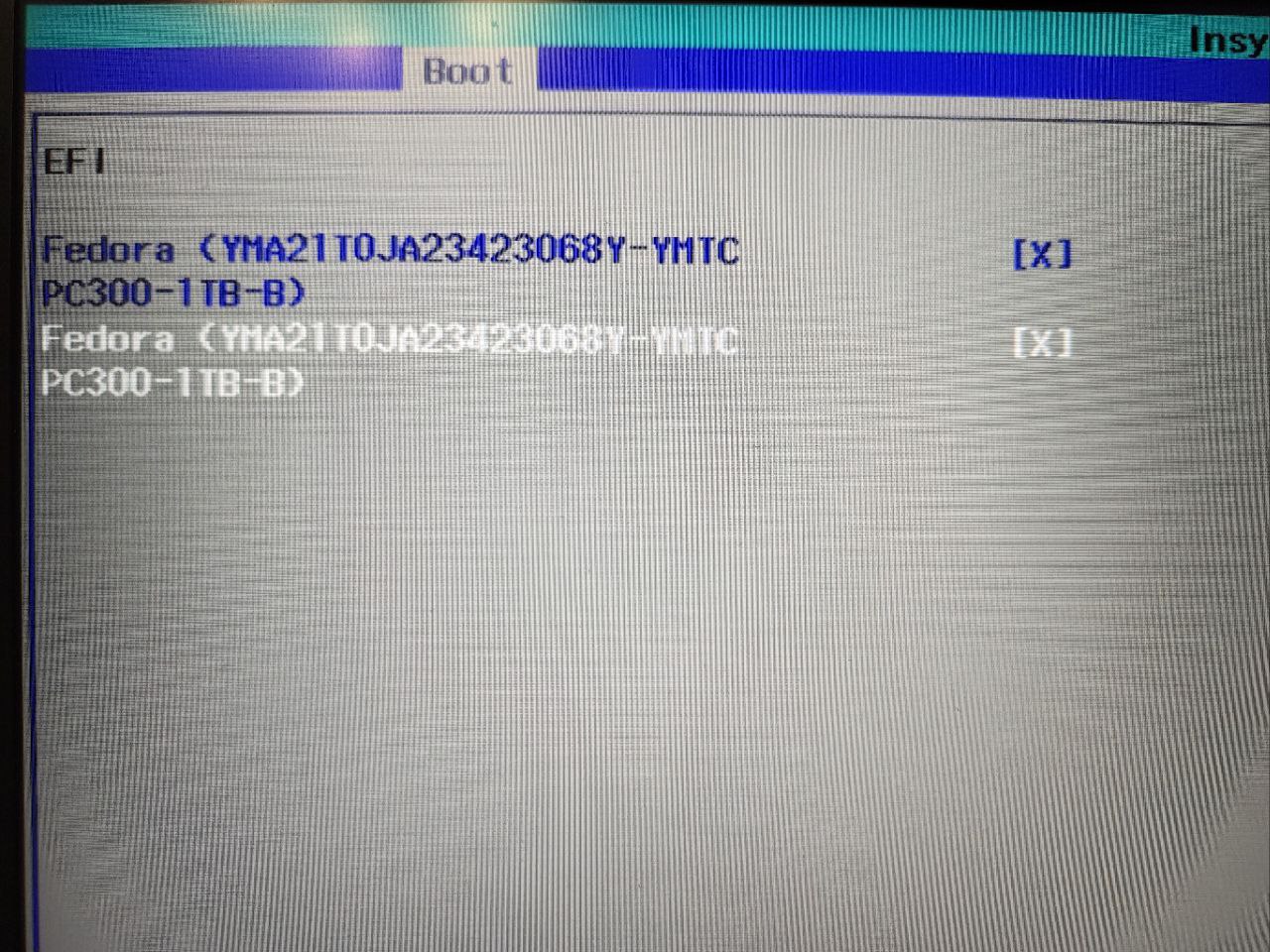

When i install Fedora 42, there are always become two SSD in boot menu instead i have one…

BIOS_boot
BIOS_boot1280×960 289 KB

lsblk

NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINTS
zram0 251:0 0 8G 0 disk [SWAP]
nvme0n1 259:0 0 953,9G 0 disk
├─nvme0n1p1 259:1 0 763M 0 part /boot/efi
├─nvme0n1p2 259:2 0 954M 0 part /boot
├─nvme0n1p3 259:3 0 122,9G 0 part /
└─nvme0n1p4 259:4 0 829,3G 0 part /home

Also if i check /dev/disk/by-id there is the same

ls -l /dev/disk/by-id

lrwxrwxrwx. 1 root root 13 окт 19 13:40 nvme-eui.0000000000000000a428b73023a3004a → ../../nvme0n1
lrwxrwxrwx. 1 root root 15 окт 19 13:41 nvme-eui.0000000000000000a428b73023a3004a-part1 → ../../nvme0n1p1
lrwxrwxrwx. 1 root root 15 окт 19 13:41 nvme-eui.0000000000000000a428b73023a3004a-part2 → ../../nvme0n1p2
lrwxrwxrwx. 1 root root 15 окт 19 13:41 nvme-eui.0000000000000000a428b73023a3004a-part3 → ../../nvme0n1p3
lrwxrwxrwx. 1 root root 15 окт 19 13:41 nvme-eui.0000000000000000a428b73023a3004a-part4 → ../../nvme0n1p4
lrwxrwxrwx. 1 root root 13 окт 19 13:40 nvme-YMTC_PC300-1TB-B_YMA21T0JA23423068Y → ../../nvme0n1
lrwxrwxrwx. 1 root root 13 окт 19 13:40 nvme-YMTC_PC300-1TB-B_YMA21T0JA23423068Y_1 → ../../nvme0n1
lrwxrwxrwx. 1 root root 15 окт 19 13:41 nvme-YMTC_PC300-1TB-B_YMA21T0JA23423068Y_1-part1 → ../../nvme0n1p1
lrwxrwxrwx. 1 root root 15 окт 19 13:41 nvme-YMTC_PC300-1TB-B_YMA21T0JA23423068Y_1-part2 → ../../nvme0n1p2
lrwxrwxrwx. 1 root root 15 окт 19 13:41 nvme-YMTC_PC300-1TB-B_YMA21T0JA23423068Y_1-part3 → ../../nvme0n1p3
lrwxrwxrwx. 1 root root 15 окт 19 13:41 nvme-YMTC_PC300-1TB-B_YMA21T0JA23423068Y_1-part4 → ../../nvme0n1p4
lrwxrwxrwx. 1 root root 15 окт 19 13:41 nvme-YMTC_PC300-1TB-B_YMA21T0JA23423068Y-part1 → ../../nvme0n1p1
lrwxrwxrwx. 1 root root 15 окт 19 13:41 nvme-YMTC_PC300-1TB-B_YMA21T0JA23423068Y-part2 → ../../nvme0n1p2
lrwxrwxrwx. 1 root root 15 окт 19 13:41 nvme-YMTC_PC300-1TB-B_YMA21T0JA23423068Y-part3 → ../../nvme0n1p3
lrwxrwxrwx. 1 root root 15 окт 19 13:41 nvme-YMTC_PC300-1TB-B_YMA21T0JA23423068Y-part4 → ../../nvme0n1p4

Looks like some kind of bug, because when i tried to install Ubuntu a few month ago, i had one SSD in boot menu as should be.

2
efibootmgr

Those EFI boot entries are essentially the same:
What's the right boot order for shim.efi and shimx64.efi files?

You can safely ignore the duplicate, it is for backward compatibility:
Tree - rpms/shim - src.fedoraproject.org

1 Like
3

So this is ok too for Fedora?

nvme-YMTC_PC300-1TB-B_YMA21T0JA23423068Y → ../../nvme0n1
nvme-YMTC_PC300-1TB-B_YMA21T0JA23423068Y_1 → ../../nvme0n1

4

You are confusing:

  • The EFI boot entries detected by the PC firmware when Linux is not even booted yet, see the command I mentioned above.
  • The disk IDs listed by the running Linux kernel, but this is unrelated to the EFI bootloader.

To be clear, your output looks correct.

5

I understand, but anyway it looks strange. Also there were not such behavior with ubuntu.

Thanks for your reply.
