Hello. I’m using Fedora 42, KDE Plasma, Noveau driver and 3 external displays. Often times, I have display issues (usually with displays connected through my dock station).
Setup
All 3 external monitors are 1080p, supporting up to 144hz (though I usually configure them with 60hz on Fedora).
I’m trying to perform the following setup:
- Built-in display disabled.
- Display connected via HDMI at 1080x1920@60
- Displays connected via DP (dock station, which is connected via USB-C) at 1920x1080@60

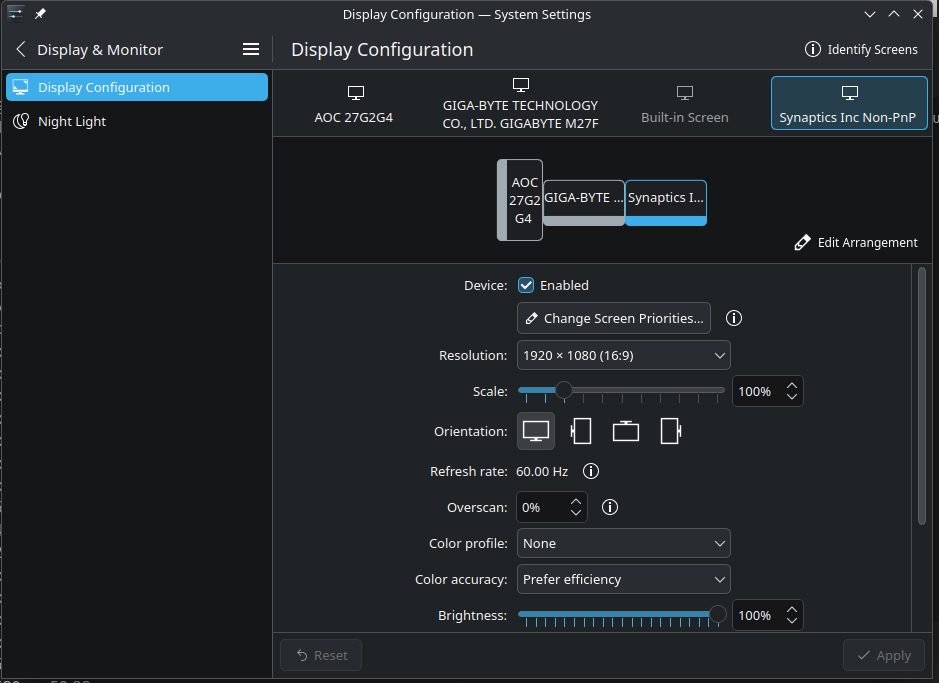

Here’s a print of the configuration in KDisplay:
The problem
The problem is, even though the displays show as properly configured, the two displays connected to my dock station do not light up (as if there was no signal).
May I get some help to fix this?
Please let me know if any further details are needed (not sure where to check for logs on this kind of issue).
Some info
uname -r output: 6.16.3-200.fc42.x86_64
Processor: Intel(R) Core(TM) i7-10750H CPU @ 2.60GHz
lspci | grep -i ‘vga|3d|2d’ output: 01:00.0 VGA compatible controller: NVIDIA Corporation TU117GLM \[Quadro T1000 Mobile\] (rev a1)
xrandr output:
Screen 0: minimum 16 x 16, current 4920 x 1920, maximum 32767 x 32767
HDMI-A-1 connected primary 1080x1920+0+0 left (normal left inverted right x axis y axis) 598mm x 336mm
1920x1080 59.96*+
1440x1080 59.99
1400x1050 59.98
1280x1024 59.89
1280x960 59.94
1152x864 59.96
1024x768 59.92
800x600 59.86
640x480 59.38
320x240 59.52
1680x1050 59.95
1440x900 59.89
1280x800 59.81
1152x720 59.97
960x600 59.63
928x580 59.88
800x500 59.50
768x480 59.90
720x480 59.71
640x400 59.95
320x200 58.96
1600x900 59.95
1368x768 59.88
1280x720 59.86
1024x576 59.90
864x486 59.92
720x400 59.55
640x350 59.77
DP-4 connected 1920x1080+3000+488 (normal left inverted right x axis y axis) 0mm x 0mm
1920x1080 59.96*+
1440x1080 59.99
1400x1050 59.98
1280x1024 59.89
1280x960 59.94
1152x864 59.96
1024x768 59.92
800x600 59.86
640x480 59.38
320x240 59.52
1680x1050 59.95
1440x900 59.89
1280x800 59.81
1152x720 59.97
960x600 59.63
928x580 59.88
800x500 59.50
768x480 59.90
720x480 59.71
640x400 59.95
320x200 58.96
1600x900 59.95
1368x768 59.88
1280x720 59.86
1024x576 59.90
864x486 59.92
720x400 59.55
640x350 59.77
DP-6 connected 1920x1080+1080+488 (normal left inverted right x axis y axis) 597mm x 336mm
1920x1080 59.96*+
1440x1080 59.99
1400x1050 59.98
1280x1024 59.89
1280x960 59.94
1152x864 59.96
1024x768 59.92
800x600 59.86
640x480 59.38
320x240 59.52
1680x1050 59.95
1440x900 59.89
1280x800 59.81
1152x720 59.97
960x600 59.63
928x580 59.88
800x500 59.50
768x480 59.90
720x480 59.71
640x400 59.95
320x200 58.96
1600x900 59.95
1368x768 59.88
1280x720 59.86
1024x576 59.90
864x486 59.92
720x400 59.55
640x350 59.77
kscreen-doctor -o output:
Output: 1 HDMI-A-1 ffc862d2-75cd-4934-8760-8dba936cdcdf
enabled
connected
priority 1
HDMI
replication source:0
Modes: 1:1920x1080@60*! 2:1920x1080@144 3:1920x1080@120 4:1920x1080@120 5:1920x1080@120 6:1920x1080@100
Geometry: 0,0 1080x1920
Scale: 1
Rotation: 2
Overscan: 0
Vrr: incapable
RgbRange: unknown
HDR: incapable
Wide Color Gamut: incapable
ICC profile: none
Color profile source: sRGB
Color power preference: prefer efficiency and performance
Brightness control: supported, set to 100% and dimming to 100%
Color resolution: unknown
Allow EDR: unsupported
Output: 2 eDP-1 723e631f-9c8a-4169-8051-1ae34ea4c0be
disabled
connected
priority 0
Panel
replication source:0
Modes: 48:3840x2160@60*! 49:1920x1200@60 50:1920x1080@60 51:1600x1200@60 52:1680x1050@60 53:1400x1050@60 54:1280x1024@60 55:1280x960@60 56:1152x864@60 57:1024x768@60 58:800x600@60 59:2560x1600@60 60:1280x800@60 61:3200x1800@60 62:2880x1620@60 63:2560x1440@60 64:1600x900@60 65:1368x768@60 66:1280x720@60
Geometry: 1920,0 1920x1080
Scale: 2
Rotation: 1
Overscan: 0
Vrr: incapable
RgbRange: unknown
HDR: incapable
Wide Color Gamut: incapable
ICC profile: none
Color profile source: sRGB
Color power preference: prefer efficiency and performance
Brightness control: supported, set to 50% and dimming to 100%
Color resolution: unknown
Allow EDR: unsupported
Output: 3 DP-4 9cbdd32a-4d52-4ae8-ba86-ad43c1a9662e
enabled
connected
priority 2
DisplayPort
replication source:0
Modes: 67:1024x768@60! 68:1920x1080@60* 69:1280x1024@75 70:1280x1024@60 71:1024x768@75 72:800x600@75 73:800x600@60 74:640x480@75 75:640x480@60 76:720x400@70 77:1280x800@60 78:1280x800@75 79:1280x720@60 80:1280x720@75
Geometry: 3000,386 1920x1080
Scale: 1
Rotation: 1
Overscan: 0
Vrr: incapable
RgbRange: unknown
HDR: incapable
Wide Color Gamut: incapable
ICC profile: none
Color profile source: sRGB
Color power preference: prefer efficiency and performance
Brightness control: supported, set to 100% and dimming to 100%
Color resolution: unknown
Allow EDR: unsupported
Output: 4 DP-6 38282ef7-c140-4c71-ba41-0655b91e18d5
enabled
connected
priority 3
DisplayPort
replication source:0
Modes: 81:1920x1080@60*! 82:3840x2160@60 83:3840x2160@60 84:1920x1080@144 85:1920x1080@120 86:1920x1080@120 87:1920x1080@120 88:1920x1080@100 89:1920x1080@60 90:1920x1080@60 91:1920x1080@50 92:1680x1050@60 93:1280x1024@75 94:1280x1024@60 95:1440x900@60 96:1280x960@60 97:1152x864@75 98:1280x720@144 99:1280x720@120 100:1280x720@120 101:1280x720@60 102:1280x720@60 103:1280x720@50 104:1024x768@75 105:1024x768@70 106:1024x768@60 107:800x600@75 108:800x600@72 109:800x600@60 110:800x600@56 111:720x576@50 112:720x480@60 113:720x480@60 114:640x480@75 115:640x480@73 116:640x480@67 117:640x480@60 118:640x480@60 119:1600x1200@60 120:2560x1600@60 121:1920x1200@60 122:1280x800@60 123:3200x1800@60 124:2880x1620@60 125:2560x1440@60 126:1600x900@60 127:1368x768@60
Geometry: 1080,386 1920x1080
Scale: 1
Rotation: 1
Overscan: 0
Vrr: incapable
RgbRange: unknown
HDR: incapable
Wide Color Gamut: incapable
ICC profile: none
Color profile source: sRGB
Color power preference: prefer efficiency and performance
Brightness control: supported, set to 100% and dimming to 100%
DDC/CI: disallowed
Color resolution: unknown
Allow EDR: unsupported
