I had an AMD 9800X3D with an RTX 4070 and now I have an Intel Ultra 7 265K without graphics card. Unfortunately hibernate has changed to sleep for me:
Can this have something to do with that change? How can I restore the hibernation feature?
You possibly need to tweak c-states in the BIOS of your new board.
Even for hibernation (suspend to disk)? Both mainboards are from ASUS, usually I leave all as it is.
Wait a minute. Did you just take the mainboard and CPU out, then slap the new ones in?
Yes, I changed both mainboard and CPU (AMD to Intel).
Did you do a clean install or just put the hardware in and power it up with the already installed OS from the AMD system?
I just put the hardware in and power it up.
When you perform an install, it automatically detects your hardware during the process so it knows what firmware to install to support that hardware. What you have is a disk that is full of AMD supporting firmware (if you did a clean install when you used that). You need to install the various intel firmware and drivers for your new hardware. That is most likely why you donât have the hibernate option.
You have two options, go through your hardware manually and install all the packages you need and hope that hibernate functions as it should, or perform a clean install and hope that hibernate functions as it should.
Hmm, but what firmware are we speaking about here? I would think that the Linux kernel would automatically detect the Intel hardware and then automatically enable the drivers.
It does automatically detect the new hardware. But it doesnât download and install new firmware it might need, nor enable new drivers. You have to do that yourself. It will have the firmware that was installed with your AMD system though.
And that will include the linux-firmware package which has a whole bunch of subpackages to provide enough support to cover most things. Which is why youâve got most functionality working. But obviously there is something that occurs during the install process, or there is a piece of firmware that is required to provide hibernation for your system. Or it is a case of sleep states being unsupported on that processer in the kernel, which is unlikely given how long itâs been out. Or it may be a BIOS setting that needs changed.
You could try the fwupdmgr tool, but how well that works is entirely dependent on how well Asus play with the LVFS.
Changing a GPU and installing new drivers is one thing, but if Iâm changing the entire base system of CPU and motherboard, I back up my important files and do a fresh install.
Edit: I had a look online and Asus seems to keep sleep state settings in the BIOS under the Advanced option and âAPMâ, advanced power management. Have a look in there. I did find an image showing a BIOS from about six years ago with Deep S4 disabled. S4 is hibernate sleep state. Check your BIOS APM settings to rule that out.

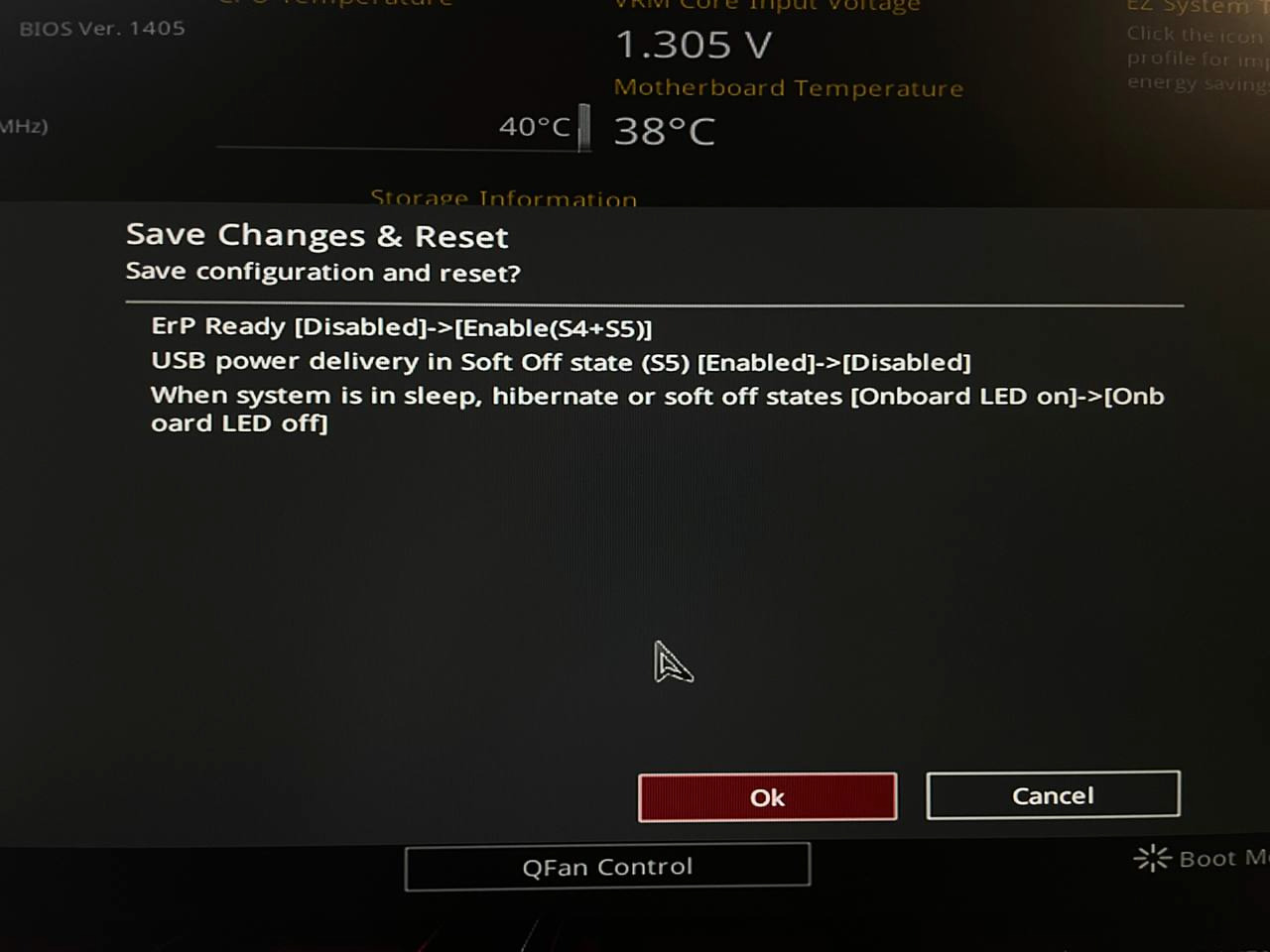

Edit 2: Also look at ErP, energy related products under APM. Itâs an EU environment thing. If itâs disabled, thatâs why you canât access hibernate. If itâs S5, thatâs the âsoft offâ sleep state. You want to enable S4+S5 to get hibernate.
I found it and enabled it!
By the way, this is a ASUS B860-I (Intel LGA 1851) mainboard. I wonder if they disabled it over a BIOS update for the ASUS X670E-I (AMD AM5), because suddenly hibernation stopped working (option was available, but black screen after wake-up from hibernation) on AMD even though it was working perfectly before.
1 Like
Ah, sorry, forgot to mention: I found and enabled it, but the hibernation feature is still not back in KDE
Youâre anyway a genius, I myself would have never had this idea.
Kernel hibernation section.
Hibernation is supported if the
CONFIG_HIBERNATIONkernel configuration option is set. However, this option can only be set if support for the given CPU architecture includes the low-level code for system resume.
Issue the following command and have a look through the file for âhibernationâ.
cat /usr/lib/modules/[kernel]/config > kernel.config
If everything has a â=yâ then your kernel is set to work with hibernation. The next question is if everything is set to â=yâ whereâs the low level code for it in Fedora?
I searched for âhiberâ and it seems all is âyâ:
CONFIG_ARCH_HIBERNATION_POSSIBLE=y
CONFIG_ARCH_HIBERNATION_HEADER=y
CONFIG_HIBERNATE_CALLBACKS=y
CONFIG_HIBERNATION=y
CONFIG_HIBERNATION_SNAPSHOT_DEV=y
CONFIG_HIBERNATION_COMP_LZO=y
# CONFIG_HIBERNATION_COMP_LZ4 is not set
CONFIG_HIBERNATION_DEF_COMP="lzo"
Do you have a swap partition, or zram? lsblk will print your disk partitions.
Yes (and on AMD before hibernation worked):
free -h -m
total used free shared buff/cache available
Mem: 62Gi 8.5Gi 49Gi 2.5Gi 6.8Gi 53Gi
Swap: 71Gi 0B 71Gi

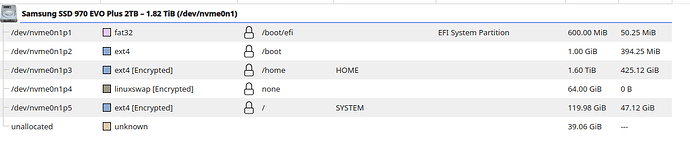

lsblk
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINTS
sda 8:0 1 56.3G 0 disk
zram0 251:0 0 8G 0 disk [SWAP]
nvme0n1 259:0 0 1.8T 0 disk
âânvme0n1p1 259:1 0 600M 0 part /boot/efi
âânvme0n1p2 259:2 0 1G 0 part /boot
âânvme0n1p3 259:3 0 1.6T 0 part
â ââhome 252:2 0 1.6T 0 crypt /home
âânvme0n1p4 259:4 0 64G 0 part
â ââluks-50e5f2b6-9845-4805-b174-ac104b8cd949 252:1 0 64G 0 crypt [SWAP]
âânvme0n1p5 259:5 0 120G 0 part
ââluks-e438f929-1452-402e-8954-e12a34e63884 252:0 0 120G 0 crypt /
Thereâs an article from Fedora magazine about hibernation in Fedora and swap partitions. Itâs way beyond my understanding though so I canât give any more advice.
I canât see why youâd have to make a new swap partition since it already exists, unless mountpoints or UUIDs have changed when you connected the new motherboard and drive, to whatâs already stored on the system and just need edited. But as I said, I havenât a clue, thatâs just me assuming.
1 Like
