Fsarchiver may be used to create a compressed and encrypted archive of an UNMOUNTED partition and store the archive in an arbitrary directory such as backup located on a mounted partition. It may also be used to obtain archive information or restore decompressed and decrypted archive data to an EXISTING and UNMOUNTED partition of suitable size.
[fish@fedora:6.14.11-300.fc42.x86_64:~]
$ lsblk -f /dev/nvme0n1p8
NAME FSTYPE FSVER LABEL UUID FSAVAIL FSUSE% MOUNTPOINTS
nvme0n1p8
ext4 1.0 G8f42c f9cb3c11-11d6-4be7-8043-8b4796753dc0 23.5G 46% /
[fish@fedora:6.14.11-300.fc42.x86_64:~]
$
Following is a template that may be copied to the backup directory. This template contains command strings that may be copy pasted to create an archive or restore to a partition from an archive
FSARCHIVER ( Template_2024_0620 )
fsarchiver command string parameters:
-j2 (2 cores - Fast compression)
-Z7 (zstd compression from 1 (very fast) to 22 (very good))
-c - (Encrypt/decrypt archive data with an interactive password)
When creating an archive of an UNMOUNTED partition, user will be
prompted for a CASE-SENSITIVE password after submitting an
fsarchiver savefs request string. Then a second request will be
made for a password. If the passwords are not identical the archive
will NOT be created. Don't attempt to archive a mounted partition.
When retoring an archive to a partition, user will be prompted
for a CASE-SENSITIVE password after submitting an fsarchiver restfs
request string. If the password submitted is not identical to the
one used when the archive was created, the archive will not be
restored. Don't attempt to restore to a mounted partition.
-v (Verbose mode parameter can be used several times to increase
the level of details)
Arbitrary names used in the following examples may be changed by the user
however the .fsa file extension is mandatory.
Example fsarchiver command strings to create a compressed and encrypted
archive, arbitrarily named ARCHIVE_00.fsa, from a desired UNMOUNTED
partition in /dev/nvme0n1 or /dev/nvme1n1 storing the archive in a mounted

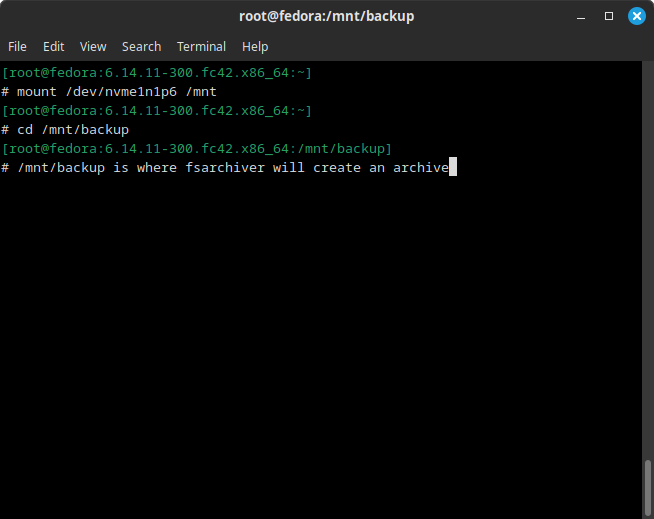

directory, arbitrarily called backup, /mnt/backup/:
date; fsarchiver -j2 -Z7 -v -c - savefs /mnt/backup/ARCHIVE_00.fsa /dev/nvme0n1p1; date
date; fsarchiver -j2 -Z7 -v -c - savefs /mnt/backup/ARCHIVE_00.fsa /dev/nvme0n1p2; date
date; fsarchiver -j2 -Z7 -v -c - savefs /mnt/backup/ARCHIVE_00.fsa /dev/nvme0n1p3; date
date; fsarchiver -j2 -Z7 -v -c - savefs /mnt/backup/ARCHIVE_00.fsa /dev/nvme0n1p4; date
date; fsarchiver -j2 -Z7 -v -c - savefs /mnt/backup/ARCHIVE_00.fsa /dev/nvme0n1p5; date
date; fsarchiver -j2 -Z7 -v -c - savefs /mnt/backup/ARCHIVE_00.fsa /dev/nvme0n1p6; date
date; fsarchiver -j2 -Z7 -v -c - savefs /mnt/backup/ARCHIVE_00.fsa /dev/nvme0n1p7; date
date; fsarchiver -j2 -Z7 -v -c - savefs /mnt/backup/ARCHIVE_00.fsa /dev/nvme0n1p8; date
date; fsarchiver -j2 -Z7 -v -c - savefs /mnt/backup/ARCHIVE_00.fsa /dev/nvme1n1p1; date
date; fsarchiver -j2 -Z7 -v -c - savefs /mnt/backup/ARCHIVE_00.fsa /dev/nvme1n1p2; date
date; fsarchiver -j2 -Z7 -v -c - savefs /mnt/backup/ARCHIVE_00.fsa /dev/nvme1n1p3; date
date; fsarchiver -j2 -Z7 -v -c - savefs /mnt/backup/ARCHIVE_00.fsa /dev/nvme1n1p4; date
date; fsarchiver -j2 -Z7 -v -c - savefs /mnt/backup/ARCHIVE_00.fsa /dev/nvme1n1p5; date
date; fsarchiver -j2 -Z7 -v -c - savefs /mnt/backup/ARCHIVE_00.fsa /dev/nvme1n1p6; date
date; fsarchiver -j2 -Z7 -v -c - savefs /mnt/backup/ARCHIVE_00.fsa /dev/nvme1n1p7; date
date; fsarchiver -j2 -Z7 -v -c - savefs /mnt/backup/ARCHIVE_00.fsa /dev/nvme1n1p8; date
COPY directory backup to facilitate its reuse.
File ARCHIVE_00.fsa may not be overwirtten and should be deleted before
reusing directory backup to store a new archive.
fsarchiver command to provide info about archive ARCHIVE_00:
date; fsarchiver -v -c - archinfo ./ARCHIVE_00.fsa; date
Example fsarchiver command strings to format an EXISTING and UNMOUNTED
partition creating the same type filesystem that was used in the partition
when the archive was created, decompressing the archived data and storing
it in the target partition:
date; fsarchiver -v -c - restfs ./ARCHIVE_00.fsa id=0,dest=/dev/nvme0n1p1; date
date; fsarchiver -v -c - restfs ./ARCHIVE_00.fsa id=0,dest=/dev/nvme0n1p2; date
date; fsarchiver -v -c - restfs ./ARCHIVE_00.fsa id=0,dest=/dev/nvme0n1p3; date
date; fsarchiver -v -c - restfs ./ARCHIVE_00.fsa id=0,dest=/dev/nvme0n1p4; date
date; fsarchiver -v -c - restfs ./ARCHIVE_00.fsa id=0,dest=/dev/nvme0n1p5; date
date; fsarchiver -v -c - restfs ./ARCHIVE_00.fsa id=0,dest=/dev/nvme0n1p6; date
date; fsarchiver -v -c - restfs ./ARCHIVE_00.fsa id=0,dest=/dev/nvme0n1p7; date
date; fsarchiver -v -c - restfs ./ARCHIVE_00.fsa id=0,dest=/dev/nvme0n1p8; date
date; fsarchiver -v -c - restfs ./ARCHIVE_00.fsa id=0,dest=/dev/nvme1n1p1; date
date; fsarchiver -v -c - restfs ./ARCHIVE_00.fsa id=0,dest=/dev/nvme1n1p2; date
date; fsarchiver -v -c - restfs ./ARCHIVE_00.fsa id=0,dest=/dev/nvme1n1p3; date
date; fsarchiver -v -c - restfs ./ARCHIVE_00.fsa id=0,dest=/dev/nvme1n1p4; date
date; fsarchiver -v -c - restfs ./ARCHIVE_00.fsa id=0,dest=/dev/nvme1n1p5; date
date; fsarchiver -v -c - restfs ./ARCHIVE_00.fsa id=0,dest=/dev/nvme1n1p6; date
date; fsarchiver -v -c - restfs ./ARCHIVE_00.fsa id=0,dest=/dev/nvme1n1p7; date
date; fsarchiver -v -c - restfs ./ARCHIVE_00.fsa id=0,dest=/dev/nvme1n1p8; date
